L300

ACCESS UP TO 100 VIRTUAL DESKTOP SESSIONS PER VSPACE SERVER

The L-series is a game-changing virtual desktop client device. Its sleek low-power design and form factor is easily mounted on a monitor or secured to a desk. Powered by NComputing’s Numo System on a Chip (SoC), the L-series client device costs less than any other thin- or zero-client options and is a quarter of the cost of typical desktop PCs. With the ability to connect up to 100 user sessions to a single NComputing vSpace server, the combination provides a simple and powerful desktop virtualization solution at one-third the price of traditional alternatives.

L-series architecture

L350

  •

L350

(2) USB 2.0 ports

DVI-D monitor port

1920 x 1200 max resolution (16:9)

1600 x 1200 max resolution (4:3)

(2) USB 2.2 for keyboard & mouse

L350

  •

L300

(2) USB 2.0 ports

VGA monitor port

1920 x 1080 max resolution (16:9)

1600 x 1200 max resolution (4:3)

(2) USB 1.1 for keyboard & mouse

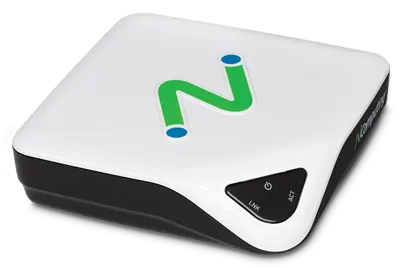

L250

  •

L250

(1) USB 2.0 ports

VGA monitor port

1440 x 900 max resolution (16:9)

1280 x 1024 max resolution (4:3)

(2) USB 1.1 for keyboard & mouse

  • L-Series Thin Client
  • Performs within your budget
  • Easy to deploy and manage
  • Video Overview

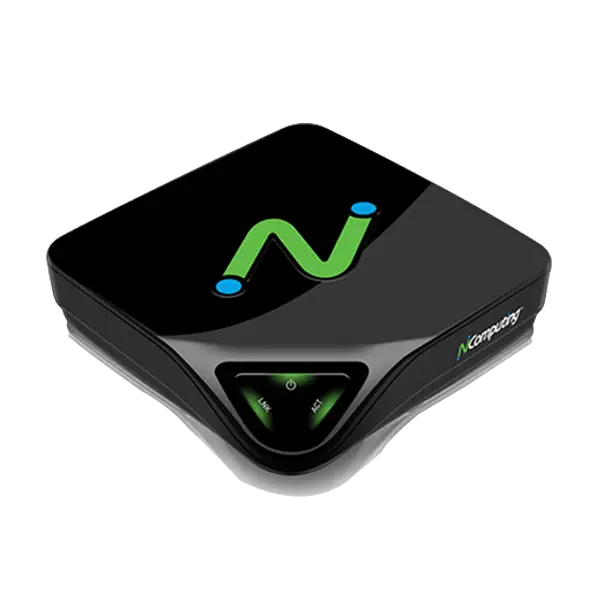

L300

Whether playing DVD-quality full-screen video or connecting specialized USB 2.0 devices, the L-series has the power and flexibility to work in a wide variety of environments and in the way you need it to.

The L-series redefines performance and value for thin-client or zero-client devices. A complete solution can be deployed for less than half the cost of PCs with ongoing management savings of 75% and power savings over 90%.

Whether you need four workstations in a remote branch office or four thousand for a corporate campus, the L-series is deployed easily and quickly using vSpace management tools.

The L-series is a zero management client. Once deployed, there are no applications, software or drivers to manage on the device. vSpace Server centrally handles firmware changes without requiring user intervention..

L350

  1. DVI-D digital video
  2. 10/100 Mbps ethernet
  3. (2) USB 2.0 for keyboard & mouse
  4. Microphone
  5. Speaker
  6. (2) USB 2.0 ports
  7. 12V DC In
  8. Power Switch

L300 Connections

  1. (2) Remote USB 2.0
  2. Headphone
  3. Microphone
  4. Keyboard
  5. Mouse
  6. 10/100BASE-T Ethernet
  7. VGA Monitor
  8. 12V DC In
  9. Power Switch

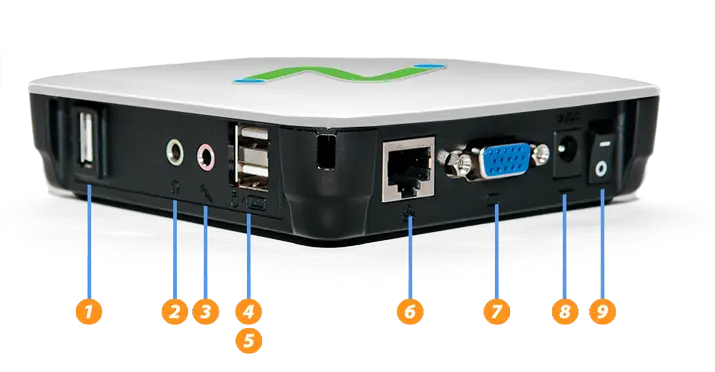

L250 Connections

  1. (1) Remote USB 2.0
  2. Microphone
  3. Headphone
  4. USB 1.1 for Keyboard
  5. USB 1.1 for Mouse
  6. 10/100BASE-T Ethernet
  7. VGA Monitor
  8. 12V DC In
  9. Power Switch
